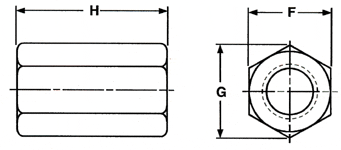

| Coupling Nuts are used to join two externally threaded parts (such as threaded rod or studs) |
|
| Nominal Size |
Basic Major |
|
F |
|
G |
|
|
H |
|
| and Threads |
Diameter |
Width |
Across the |
Flats |
Width Across |
the Corners |
|
Thickness |
|
| per Inch |
of Thread |
Basic |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
| 1/4" - 20 |
0.2500 |
3/8" |
0.375 |
0.365 |
0.433 |
0.416 |
7/8" |
0.890 |
0.860 |
| 5/16" - 18 |
0.3125 |
1/2" |
0.500 |
0.489 |
0.577 |
0.557 |
1-1/8" |
1.130 |
1.110 |
| 3/8" - 16 |
0.3750 |
1/2" |
0.500 |
0.489 |
0.577 |
0.557 |
1-1/8" |
1.130 |
1.110 |
| 1/2" - 13 |
0.5000 |
11/16" |
0.688 |
0.663 |
0.794 |
0.756 |
1-3/4" |
1.760 |
1.730 |
| 5/8" -11 |
0.6250 |
13/16" |
0.813 |
0.782 |
0.939 |
0.891 |
2-1/8" |
2.140 |
2.100 |
| 3/4" - 10 |
0.7500 |
1" |
1.000 |
0.963 |
1.155 |
1.097 |
2-1/4" |
2.270 |
2.220 |
| 1" - 8 |
1.0000 |
1-3/8" |
1.375 |
1.325 |
1.588 |
1.511 |
2-3/4" |
2.780 |
2.720 |
 |
|
| |
|
|
